PWS Floor’ Woodcore Panels offer a robust and reliable raised flooring solution designed for mission-critical spaces. Engineered with a compressed high-density wood core, hot-dipped galvanized steel base, and premium surface finishes, these panels seamlessly combine performance, safety, and aesthetic value.
Whether retrofitting an existing system or building a new infrastructure, our woodcore panels integrate effortlessly with most raised access floor configurations.
Engineered for strength and stability, PWS Floor Woodcore Panels offer superior load capacity, durability, and acoustic performance for critical environments.
Solid 1.04” thick wood core ensures high durability and structural strength.
24” x 24” (600mm x 600mm) for universal access floor system compatibility.
High-pressure laminate surface with ABS edge protection provides long-term wear resistance and a clean appearance.
Supports loads up to 1,250 lbs – perfect for data centers, control rooms, and demanding commercial spaces.
Hot-dipped galvanized steel bottom pan ensures corrosion resistance and added stability.
Delivers excellent dampening properties for noise-sensitive environments.
The PWS Floor Series is engineered to suit different load requirements and applications. Each variant offers tailored performance for its designated use case:
| Variant | Model | Load Capacity | Best For |
| Light Duty | PWS Floor-LD | Up to 800 lbs | General office, administrative areas |
| Advanced | PWS Floor-AX | Up to 1,000 lbs | Light technical rooms, control spaces |
| Heavy Duty | PWS Floor-HD | Up to 1,250 lbs | Control rooms, data centers, utility hubs |
| Super Heavy Duty | PWS Floor-SHD | 1,250+ lbs | Industrial zones, high-load environments |
High-pressure laminate or custom surface finishes
ABS edge trim for
protection
Galvanized
steel backing
Dimensional accuracy and load-tested strength
Note: Load ratings are based on uniformly distributed loads. Contact PWS Floor for specific structural performance data or seismic-rated configurations.
Our laminate-topped woodcore panels are trusted in a range of sectors:
Specification | Details |
Panel Type | Solid Woodcore |
Core Material | High-density compressed wood |
Top Finish | Multiple options (see below) |
Edge Detail | ABS Edge Trim |
Bottom Pan | Hot-dipped Galvanized Steel |
Panel Size | 24” x 24” (600mm x 600mm) |
Panel Thickness | 1.18” (30mm) |
Load Capacity | Up to 1,250 lbs (see PWS Floor variants) |
Compatibility | Fits most raised floor systems |
Select from a broad range of finishes to meet your facility’s technical and aesthetic requirements:
Scratch-resistant and easy to clean – best for high-traffic areas.
Excellent chemical and moisture resistance – ideal for healthcare and labs.
Acoustic performance for office or command spaces.
Eco-friendly and antimicrobial – suited for education and healthcare.
PWS Floor Woodcore Floor Panels are designed with safety, sustainability, and performance in mind. Our panels are certified to meet and exceed international standards for fire resistance and structural reliability.
Supports up to 1,250 lbs for high-load environments.
Compliant with EN, ASTM, ISO, and BS safety and performance benchmarks.
Built with a non-combustible core to limit flame spread and smoke generation.
Reduces noise transmission in control and communication spaces.
Engineered to withstand environmental fluctuations without warping or degradation.
Modular design allows for quick and efficient panel access.

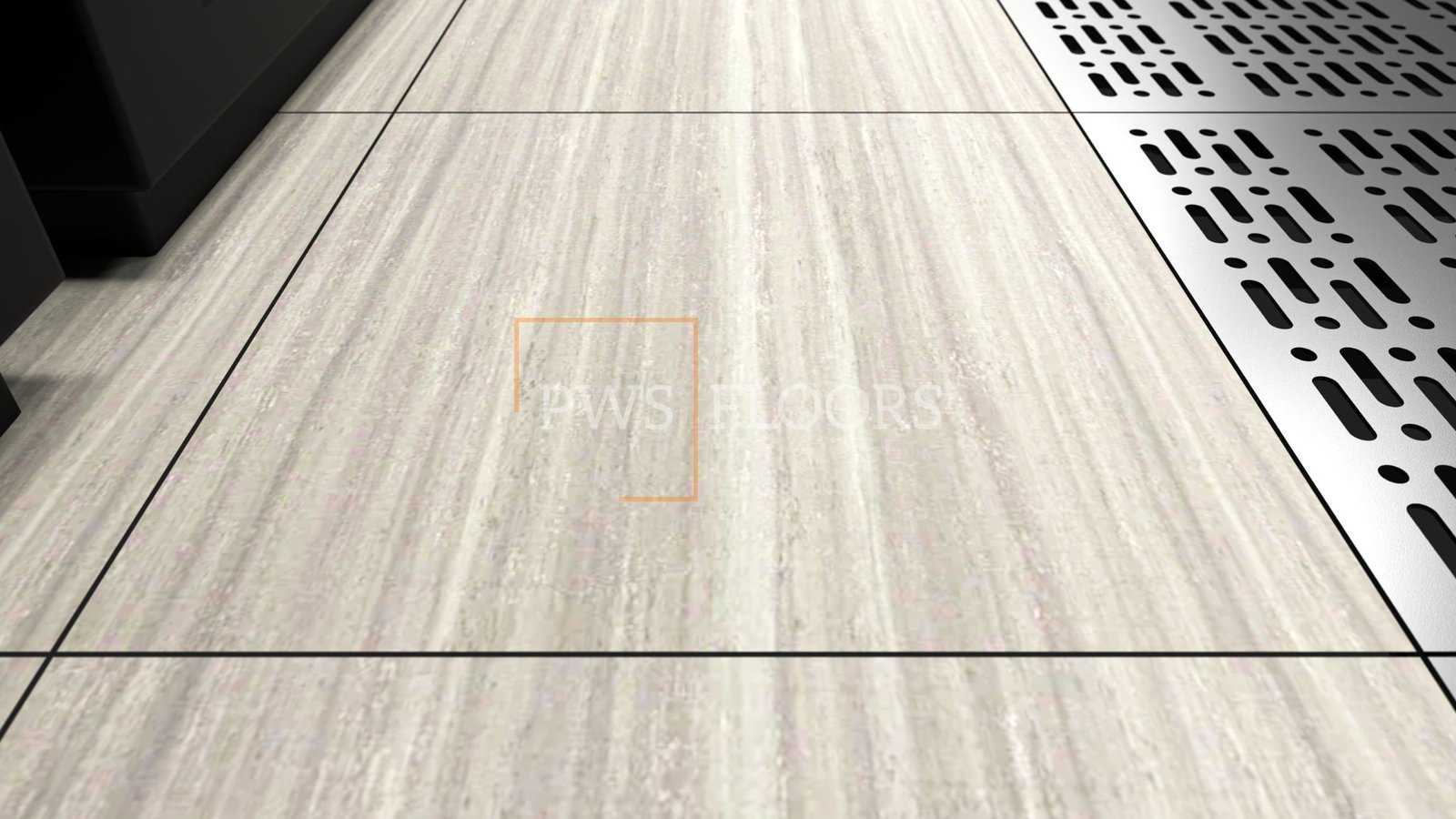

Seamlessly integrates with airflow grille panels to support efficient HVAC performance.
Manufactured with over 95% recyclable content, reducing environmental impact.
Choose from a range of laminates, branding options, and trim finishes to match your facility's interior.
